This 8’x24′ office trailer floor plan shows an 8’x24′ single-wide mobile office with 192 sq ft of floor space. The box is 8’x24′; however, the towing hitch adds about 4′, so the overall length is about 28′. Inside, the layout includes one open site office with a desk, file cabinets and a plan table.

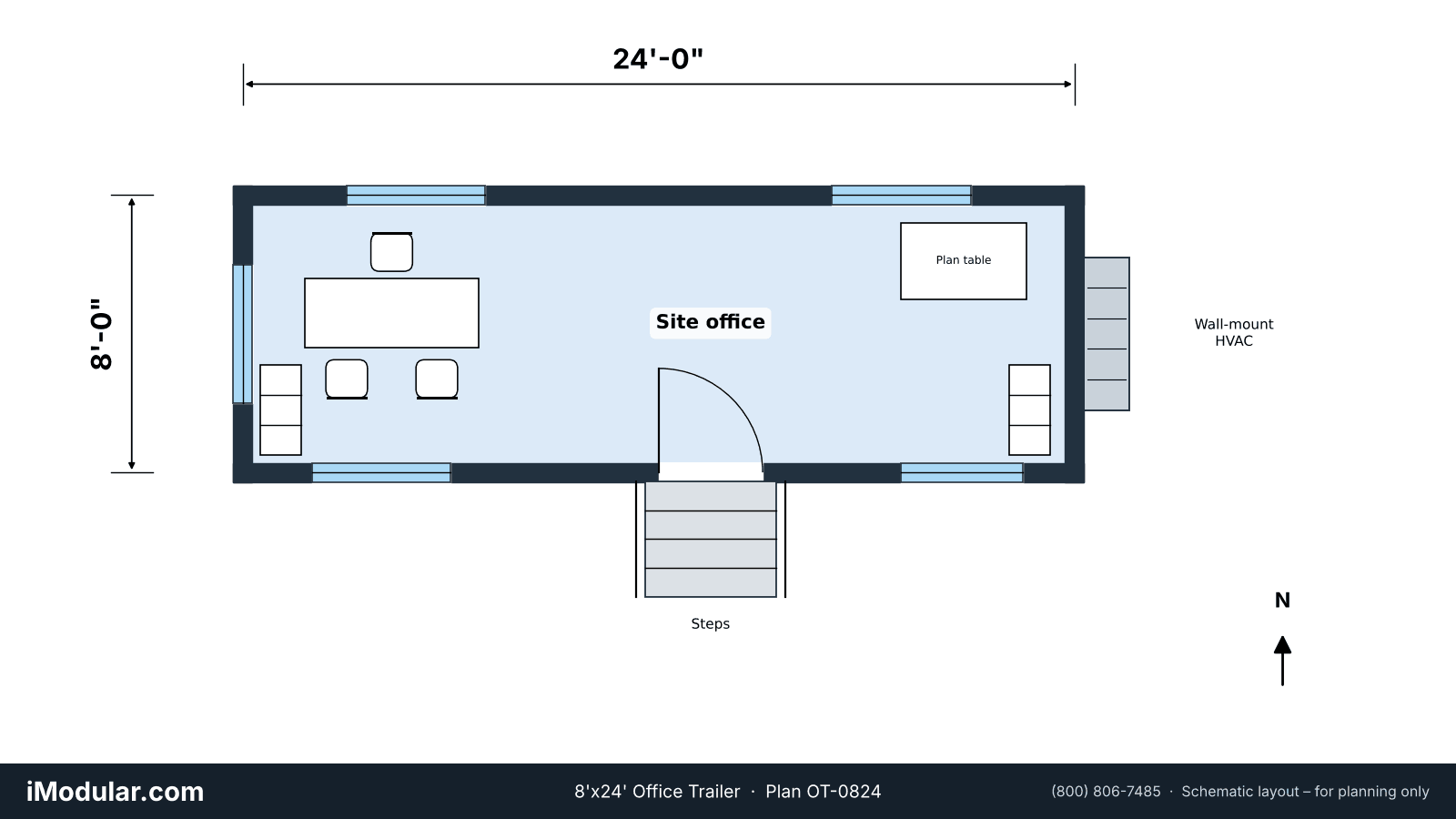

The 8’x24′ office trailer floor plan
View full size | Print floor plan | Share this plan | Request a price for this plan
First, tap this 8’x24′ office trailer floor plan to zoom in. Then use the links under the plan to print it or share it with your team.
8’x24′ office trailer specs at a glance
First, here are the key specs for this 8’x24′ office trailer floor plan, so you can compare it with your site and headcount.
| Box size | 8’x24′ |
| Floor area | 192 sq ft |
| Overall length with hitch | About 28′ (hitch adds about 4′) |
| Sections | 1 (single-wide on its own chassis) |
| Occupancy group | B (business) |
| Code occupant load | About 2 (150 sq ft per person) |
| Desks shown in this layout | 1 |
| Restroom | None in this layout (we add one on 40’+ lengths) |
| Exterior doors | 1, each with steps |
| Access | Steps (most codes do not require a ramp on a job site trailer) |
| HVAC | 1 wall-mount unit on the end wall |
| Plan ID | OT-0824 |
Room schedule
| Room | Size | Sq ft |
|---|---|---|
| Site office | 24’x8′ | 192 |
We measure the rooms to the module lines, so interior walls take a few inches from each room.
How this layout works
- One open site office with a desk, file cabinets and a plan table
Like every iModular.com plan, this 8’x24′ office trailer floor plan follows a few rules: wall-mount HVAC units sit on the end wall, and that wall has no windows; windows on both long walls light the offices and the open area. Also, every layout can change. For example, we can move walls, doors and fixtures before the factory builds a new building, and a contractor can often remodel a used one after delivery.
What a 8’x24′ office trailer is used for
For example, buyers often choose this layout for uses like these. However, the same layout works for many other jobs, too.
- Job site office for a superintendent or foreman
- Security or guard office at a gate or yard
- Ticket, check-in or sales booth
- Small field office for a utility or survey crew
Delivery and site setup
A 8’x24′ office trailer rides on its own steel chassis with axles and a hitch, so a truck tows it to the site in one piece. At 8′ wide it stays within the standard legal width for most highways (8′-6″), so in most states it moves without an oversize-load permit. Once it arrives, the crew levels it on piers or blocks, anchors it with tie-downs and adds steps at each door. However, utility hookups are by others.
As a result, the site work for this building usually comes down to a level pad, a foundation, utility hookups and access. Also, ask your city or county early, because local permits often set the schedule.
Approvals where you are
In short, the building is the same everywhere. Instead, what changes is the state program that approves it and how your city or county permits the site work. For example, in California the Department of Housing and Community Development (HCD) approves commercial modular buildings (California prices and guides). In Texas, the TDLR Industrialized Housing and Buildings program covers them (Texas guide). Similarly, Florida uses the DBPR manufactured buildings program (Florida guide). Either way, iModular.com brokers modular buildings nationwide. Read how permits work for modular buildings.
Compare nearby sizes
Also, if this size is close but not quite right, compare these nearby sizes:
- 8’x20′ office trailer floor plan – 160 sq ft
- 8’x28′ office trailer floor plan – 224 sq ft
- Browse every size in our modular building floor plans library
Buy or rent a 8’x24′ office trailer
iModular.com sells new and used office trailers and arranges rentals and leases. In many cases, a used building is the fastest and lowest-cost way to get this size, or one close to it. Learn how to buy a used modular building, or compare financing, leasing and rental. In California, see our stock mobile office trailers.
Get pricing on a 8’x24′ office trailer
New or used, buy or rent. Mention plan OT-0824 and we will price this layout or one close to it.
Call (800) 806-7485 · Matt answers six days a week · Request a price online
Frequently asked questions
How many square feet is a 8’x24′ office trailer?
A 8’x24′ office trailer has 192 sq ft. In this 8’x24′ office trailer floor plan, we measure the 8’x24′ box, so the hitch adds about 4′ to the overall length but no floor space.
How many people can work in a 8’x24′ office trailer?
This layout has desks for 1 people. However, for exits and restrooms, the building code counts business (B) space at 150 sq ft per person, which gives a code occupant load of about 2.
Does a 8’x24′ office trailer need a ramp?
Usually not. Most codes do not require a ramp on a job site office trailer, so this plan shows steps. However, if the trailer will serve the public, such as a sales or school office, plan on an ADA ramp and landing.
Can a 8’x24′ office trailer have a restroom?
A 8’x24′ trailer is tight for a restroom. Most buyers who need one step up to a 10′ or 12′ wide trailer at 40′ or longer.
Drawn by iModular.com. Schematic concept, not for construction and not to scale. Final drawings by a licensed professional. Reviewed by Matt Banes · Plan OT-0824 · Updated October 29, 2026.
